F506112 F506115 F506214 F506212 F506215 F607214 Textile Spinning machine multi arm bearing bearing

2023年12月19日Full Complement Drawn Cup Needle Roller Bearings Textile Machine Bearing 未分类 10800

F506112 50 * 61 * 12mm Spinning Machinery Pointed Full Complement Needle Roller Bearing Manufacturer Direct Sales
F506115 50 * 61 * 15mm Spinning Machinery Pointed Full Complement Needle Roller Bearing Manufacturer Direct Sales

F506214 Textile Machine Arm Kit Full Complement Needle Roller Bearing

F506212 Textile Machine Arm Kit Full Complement Needle Roller Bearing

F506215 Textile Machine Arm Kit Full Complement Needle Roller Bearing

F607214 Textile Machine Arm Kit Full Complement Needle Roller Bearing1

F506112 F506115 F506214 F506212 F506215 F607214 Textile Spinning machine multi arm bearing bearing

shaft diameter	Model number		Dimensions(mm)			Basic load(N)		Speed rpm)		Weight
(mm)	Old	New	ID	OD	W	Dynamic	Static	greas	oil	(kg)
(mm)	Old	New	Fw	D	B	Dynamic	Static	greas	oil	Mass
8	F-08410	941/8	8	14	10	5200	7150	4500	7400	7
8	F-08412	942/8	8	14	12	4550	7150	4500	7400	9
9	F-091510	941/9	9	15	10	8000	11500	4200	7100	6
9	F-091513	942/9	9	15	13	8560	12800	4200	7100	8
10	F-101615	942/10	10	16	15	6890	11500	4200	7100	12
12	F-121712	941/12	12	17	12	8400	11900	4200	7100	8
	F-121715	942/12	12	17	15	9000	12500	4200	7100	10.5
	F-121718	973/12	12	17	18	9800	13500	4200	7100	13
	F-1212	Dec-94	12	18	12	6380	10900	4200	7100	6
13	F-1312		13	19	12	8500	14200	4000	7000	9.9
14	F-1412	30941/14	14	20	12	7900	13500	4100	7300	10.5
14	F-1416	50941/14	14	20	16	12700	22400	4100	7300	15
15	F-152012	941/15	15	20	12	8400	11900	4200	7100	10
	F-152016	942/15	15	20	16	9500	12800	4200	7100	13.5
	F-152020	943/15	15	20	20	10500	16000	4200	7100	17.2
	F-1512	30941/15	15	21	12	9700	15900	4860	8100	12.2
	F-1516	50941/15	15	21	16	9700	15500	4860	8100	13.4
16	F-1616	50941/16	16	22	16	14100	25900	4620	7700	17
16	F-1612	30941/16	16	22	12	8700	15500	4620	7700	12
17	F-1712	30941/17	17	23	12	10600	21600	4400	7300	13
	F-1714	941/17	17	23	14	12500	22500	4400	7300	15
	F-1716	50941/17	17	23	16	13200	23700	4400	7300	18
	F-1718	942/17	17	23	18	13800	24800	4400	7300	21
	F-1720	70941/17	17	23	20	18000	36700	4400	7300	23
	F-1722	943/17	17	23	22	19300	38200	4400	7300	26.5
18	F-1812	30941/18	18	24	12	10800	19200	4140	6900	17
18	F-18916	50941/18	18	24	16	15000	29100	4140	6900	18
20	F-2010	20941/20	20	26	10	8000	15600	4140	6900	11
	F-2012	30941/20	20	26	12	10200	19500	4140	6900	15
	F-2014	941/20	20	26	14	15800	40500	4140	6900	17
	F-2016	50941/20	20	26	16	16000	30500	4140	6900	20
	F-2020	942/20	20	26	20	18800	42500	4140	6900	26
	F-2025	943/20	20	26	25	20500	35500	3800	6300	33
22	F-2210	20941/22	22	28	10	7900	13000	3480	5800	12.5
	F-2212	30941/22	22	28	12	9000	13300	3480	5800	14
	F-2216	50941/22	22	28	16	17000	33000	3480	5800	22
	F-2220	70941/22	22	258	20	20300	47200	3480	5800	29
25	F-2512	20941/25	25	32	12	5250	6000	3100	5100	17
	F-2516	941/25	25	32	16	18700	37900	3100	5100	28
	F-2520	60941/25	25	32	20	22800	46000	3100	5100	43
	F-2522	942/25	25	32	22	11000	16500	3100	5100	40
	F-2525	943/25	25	32	25	11500	18500	3100	5100	43

Introducing Full Complement Needle Roller Bearings
A needle roller bearing employs small cylindrical rollers, differing from a standard roller bearing by the ratio of diameter to length of the rollers. When this ratio falls within the range of 0.1 to 0.4, it qualifies as a needle roller bearing.
Compared to ball bearings, needle bearings boast a larger surface area in contact with the bearing’s outer surfaces. Typically, these bearings consist of a needle cage that arranges and holds the rollers, the rollers themselves, and an outer race, sometimes integrated into the housing.
Radial needle bearings are cylindrical and employ rollers aligned parallel to the shaft axis. Conversely, thrust needle bearings lie flat and utilize a radial arrangement of needles.
Full complement bearings feature solid inner and outer rings with rib-guided cylindrical rollers. By accommodating the maximum number of rolling elements, they exhibit exceptionally high radial load-bearing capacity, making them ideal for compact design applications.
Needle roller bearings are available in single row, double row, and solid or split cage units.
Advantages of Full Complement Needle Roller Bearings
Needle roller bearings are equipped with slender, elongated rollers (with lengths typically ranging from 3 to 10 times their diameter, generally not less than 5mm). This compact radial structure combines an impressive inner diameter size with substantial load capacity, making them particularly suitable for installations where space is limited. Their outer diameter remains the smallest among comparable bearings, further enhancing their adaptability for constrained radial mounting.
In varying applications, the precision of processing and surface quality of needle roller bearings should align with the specific requirements of the bearing ring in use. These bearings encompass units that integrate centripetal needle roller bearings and thrust bearing components, allowing versatile functionality across different operational needs.
We offer different types

HK Perforated Drawn Cup Needle Roller Bearings

HK…RS Perforated Type Drawn Cup Needle Roller Bearings Sealed on One Side

HK…2RS Perforated Type Drawn Cup Needle Roller Bearings Double Sided with Seals

BK Sealed drawn cup needle roller bearings

BK…RS Sealed Type Drawn Cup Needle Roller Bearings One Side Sealed

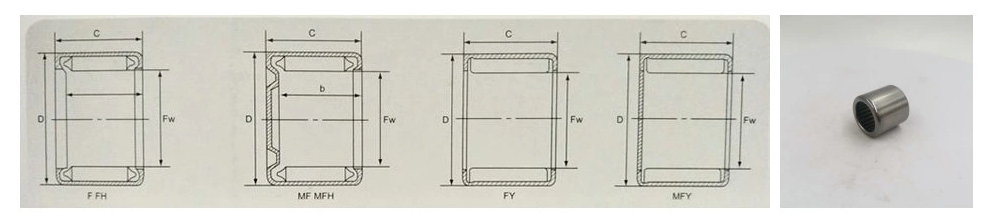

F Perforated Type Drawn Cup Full Complement Needle Roller Bearings

FY Perforated Type Drawn Cup Full Complement Needle Roller Bearings (Grease Limit)

MF Sealed Drawn Cup Full Complement Needle Roller Bearings

MFY Sealed Type Drawn Cup Full Complement Needle Roller Bearings (Grease Limit)
SCE–Perforated Drawn Cup Needle Roller Bearings

BCE–Seal Type Drawn Cup Needle Roller Bearings

SCH–Perforated Drawn Cup Needle Roller Bearings

BCH–Seal Type Drawn Cup Needle Roller Bearings

SN–perforated drawn cup full complement needle roller bearing

B–perforated drawn cup full complement needle roller bearing

BH–Perforated Drawn Cup Full Complement Needle Roller Bearings (Heavy Series)

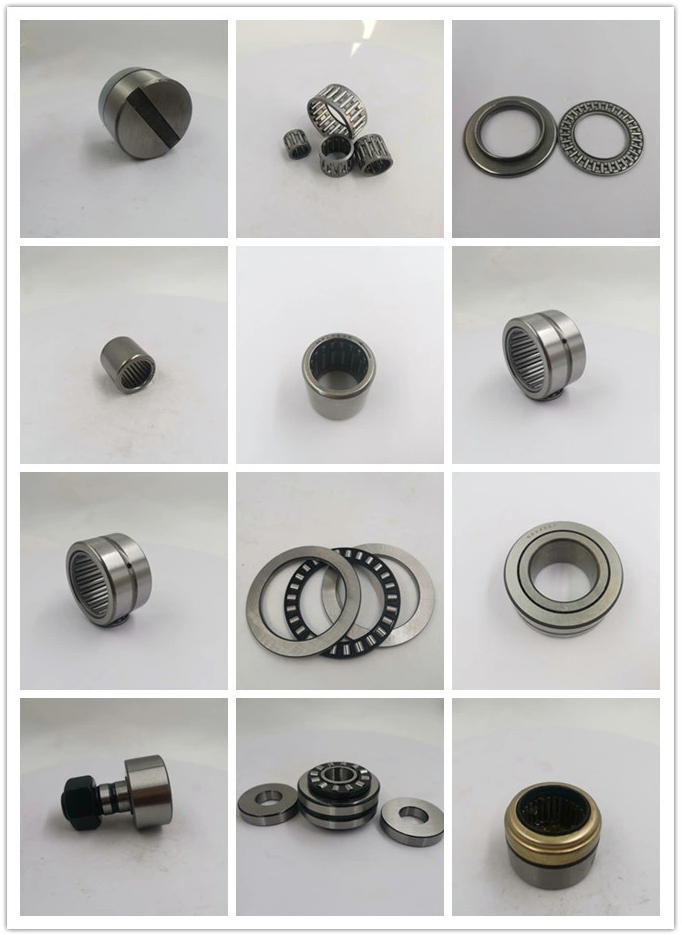

We also offer other model as below
