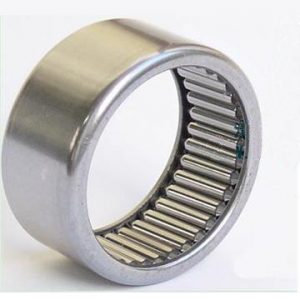

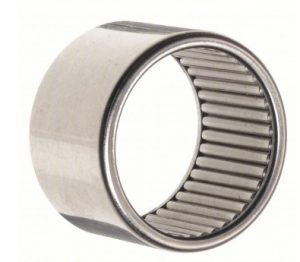

| B-24 SPECIFICATIONS |
| Bore Diameter 0.125 |
| Outside Diameter 0.25 |
| Width 0.25 |
| Dynamic Load Rating 390 |
| Static Load Rating 370 |
| Grease Speed Rating 8100 |
| Oil Speed Rating 13000 |
| Weight 0.002 |
| Have Stock Yes |
| Designation: B-21/24 | ||||
| Type: Radial cylindrical roller bearings. Needle roller bearings. Assembled components. (3.968X7.143X6.35). | ||||
| Main dimensions: | ||||
| FW mm⁄inch | D mm⁄inch | C mm⁄inch | — | Mass kg⁄lb |
| 3.968 | 7.143 | 6.35 | — | 0.1 |
| 5⁄32 | 9⁄32 | 1⁄4 | — | 0.22 |
| Designation: B-21/25 | ||||
| Type: Radial cylindrical roller bearings. Needle roller bearings. Assembled components. (3.968X7.143X7.937). | ||||
| Main dimensions: | ||||
| FW mm⁄inch | D mm⁄inch | C mm⁄inch | — | Mass kg⁄lb |
| 3.968 | 7.143 | 7.937 | — | 0.13 |
| 5⁄32 | 9⁄32 | 5⁄16 | — | 0.287 |
| Model | ||||
| B-24 | B-95 | B-146 | B-208 | B-2812 |
| B-21/24 | B-96 | B-148 | B-2010 | B-2816 |
| B-21/25 | B-97 | B-1412 | B-2012 | B-2820 |
| B-34 | B-98 | B-1416 | B-2016 | B-2824 |
| B-36 | B-910 | B-1418 | B-2020 | |
| B-44 | B-912 | BH-1410 | BH-208 | B-308 |
| B-45 | BH-98 | BH-1412 | BH-2012 | B-3012 |
| B-47 | BH-910 | BH-1416 | BH-2016 | B-3016 |
| BH-912 | BH-2020 | B-328 | ||
| B-55 | B-158 | B-3216 | ||
| B-56 | B-105 | B-1516 | B-218 | B-3220 |
| B-57 | B-107 | B-2110 | ||
| B-59 | B-108 | B-166 | B-2120 | B-3228 |
| BH-57 | B-1010 | B-167 | BH-3312 | |
| BH-59 | B-1012 | B-168 | B-228 | BH-3316 |
| BH-108 | B-2210 | B-3412 | ||
| B-65 | BH-1012 | B-1610 | B-2212 | B-348 |
| B-66 | BH-1016 | B-1612 | B-2216 | B-3416 |
| B-67 | B-1616 | B-2220 | B-3424 | |
| B-68 | B-116 | BH-168 | BH-2210 | |
| B-69 | B-118 | BH-1610 | BH-2212 | B-3612 |
| B-610 | B-1110 | BH-2216 | B-3620 | |
| BH-68 | B-1112 | BH-1612 | BH-2220 | B-3624 |
| BH-117 | BH-1616 | |||
| B-76 | BH-1110 | BH-1620 | B-248 | B-4012 |
| B-77 | BH-1112 | BH-1624 | B-2410 | |
| B-78 | B-2412 | B-4216 | ||
| B-710 | B-126 | B-1710 | B-2414 | |
| BH-78 | B-128 | B-2416 | B-4410 | |
| B-1210 | B-186 | B-2420 | B-4416 | |
| B-85 | B-1212 | B-188 | B-4420 | |
| B-86 | B-1216 | B-1812 | B-268 | |
| B-87 | B-1816 | B-2610 | B-5612 | |
| B-88 | B-136 | BH-1812 | B-2616 | |
| B-810 | B-138 | BH-1816 | B-2616 | |
| B-812 | B-1314 | BH-1820 | B-2620 | |
| BH-87 | B-1316 | BH-2620 | ||
| BH-88 | BH-1310 | B-1916 | ||
| BH810 | BH-1312 | |||
| BH-812 | B-1312 | |||
