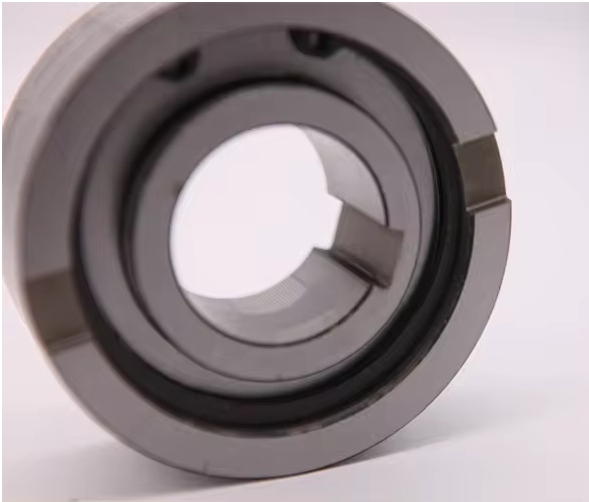

Type CK-B One Way Clutch Bearing

The CK-B series is a wedge type one-way clutch with keyways on both ends of the outer ring without bearing support. The radial dimensions are the same as the standard bearing dimensions. Required for useInstall bearings to withstand axial and radial loads. Lubricating grease has been added at the factory.The standard installation method is for the CK-B model to be coaxial and side by side with the bearings, with the same tolerance requirements. The inner ring is keyed to the shaft, and the outer ring has a tolerance of h7 and toleranceTo match the H7 machine wall, the end face keys on both sides of the outer ring are used to fix the outer ring and the machine wall to transmit torque.This series is commonly used in packaging, printing, food, medical, textile, chemical and other mechanical equipment.

One Way Clutch Bearing

TYPE	NOMINAL TORQUE [N . m]	OVERRUNNIng LIMITING SPEEDS [r/min]		DIMENSION IN CONTOUR [mm]						BEARING GB/T276-1994	WEIGHT [Kg]
		OVERRUNNIng LIMITING SPEEDS [r/min]		OUTER RACESIZE			INNER RACE SIZE
		INNER RACE	OUTER RACE	D [h7]	B	bwxtw	d [h7]	C	bnx tn
CK-B1042	54	1500	500	42	23	8×1.5	10	24	3×1.4	6302	0.12
CK-B1542	54	1500	500	42	23	8×1.5	15	24	3×1.4	6302	0.17
CK-B1747	72	1500	500	47	23	8×1.5	17	24	3×1.4	6303	0.21
CK-B2052	95	1200	450	52	23	8×1.5	20	24	4×1.8	6304	0.25
CK-B2562	145	1200	450	62	23	8×1.5	25	24	4×1.8	6305	0.35
CK-B3062	166	1000	400	62	23	8×1.5	30	24	4×1.8	6206	0.32
CK-B3572	232	1000	400	72	23	8×1.5	35	24	5×2.3	6207	0.43
CK-B4080	388	1000	400	80	31	12×3.5	40	32	6×2.8	6208	0.71
CK-B4585	462	800	300	85	31	12×3.5	45	32	6×2.8	6209	0.77
CK-B5090	504	800	300	90	31	12×3.5	50	32	10×3.3	6210	0.83
CK-B55100	600	700	250	100	31	12×3.5	55	32	10×3.3	6211	1.02
CK-B60110	680	600	200	110	31	12×3.5	60	32	10×3.3	6212	1.26
CK-B70125	1220	600	200	125	38	12×3.5	70	39	12×3.3	6214	1.94
CK-B80140	1580	500	150	140	38	12×3.5	80	39	12×3.3	6216	2.39
CK-B90160	2080	500	150	160	38	12×3.5	90	39	12×3.3	6218	3.17
CK-B3072	232	1000	400	72	27	8×2.0	30	27	8×2.0	6306	0.42
CK-B3580	388	1000	400	80	31	12×2.5	35	31	10×2.6	6307	0.75
CK-B3585	462	800	300	85	31	12×2.3	35	31	10×2.6	6209	0.76
CK-B4090	504	800	300	90	32	12×3.5	40	33	12×3.3	6308	0.92
CK-B45100	600	700	250	100	36	14×4.5	45	36	14×2.2	6309	0.89

The prev: Type CK-A One Way Clutch Bearing Unidirectional Overrunning Clutches and BackstopsThe next: Type CK-C One Way Bearing Clutch One Way Rotation Bearings

Related recommendations

Type CK-C One Way Bearing Clutch One Way Rotation Bearings
2024年4月26日 218
Type CK-A One Way Clutch Bearing Unidirectional Overrunning Clutches and Backstops
View details
Coiled tubing Clamping block 1.50 1.75 2.00 2.38 Gripper Block for HR580
2024年1月24日 1353
Coiled tubing Injector Hydra Rig HR580 CD310341 CD310337 CD310339 CD310335 CD310343 CD310345 Application concept of Gripper Injector ChainGripper - clamping block of the injector chain, installed between the chain links (fig. gripper). The co...
View details

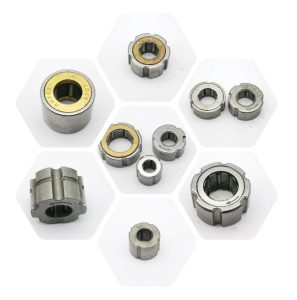

OWC One Way Clutch Needle Roller Bearings
