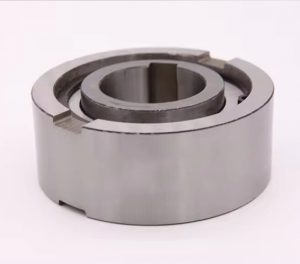

Type CK-A One Way Clutch Bearing

Type CK-A is a sprag type freewheel non-bearing supported.Nominal dia. – direction diameter is a standard ball bearings dimension.Bearings are required to support axial and radial loads.Units are delivered grease lubricated.A standard arrangement is to install this type besides a bearing with the same housing diameter tolerance The inner race and the outer race are keyed to the shaft and hole This series extensive used in machiney system of conveyer,hosting,packing,printing,papermaking,weaving.chemical,medical,foodand so on.

One Way Clutch Bearing

Item	NOMINAL TORQUE [n.m]	OVERRUNNING LIMITING SPEEDS [r/min]		DImension in CONTOUR [mm]						BEARING GB/T276-1994	WEIGHT [Kg]
		OVERRUNNING LIMITING SPEEDS [r/min]		OUTER RACE SIZE			INNER RACE SIZE
		INNER RACE	OUTER RACE	d [h7]	B	bwxtw	d [h7]	C	bnx tn
CK-A1542	54	1750	500	42	23	3×1.8	15	24	3×1.4	6302	0.17
CK-A1747	75	1575	400	47	23	3×1.8	17	24	3×1.4	6303	0.21
CK-A2052	95	1400	400	52	23	3×1.8	20	24	3×1.4	6304	0.25
CK-A2562	145	1260	350	62	23	4×2.5	25	24	4×1.8	6305	0.35
CK-A3072	208	1050	300	72	23	5×3.0	30	24	5×2.3	6306	0.47
CK-A3580	340	815	200	80	28	8×4.0	35	30	6×2.8	6307	0.69
CK-A4090	462	700	200	90	28	8×4.0	40	30	6×2.8	6308	0.87
CK-A45100	783	560	200	100	28	8×4.0	45	30	6×2.8	6309	1.07
CK-A50110	850	525	180	110	28	10×5.0	50	30	8×3.3	6310	1.59
CK-A60130	1050	490	180	130	34	10×5.0	60	36	8×3.3	6312	2.16
CK-A65140	224	490	180	140	34	10×5.0	65	36	10×3.3	6313	2.49
CK-A70150	1850	455	150	150	40	10×5.0	70	42	10×3.3	6314	3.36
CK-A75160	2140	455	150	160	40	12×5.0	75	42	12×3.3	6315	3.81
CK-A80170	2450	420	150	170	40	12×5.0	80	42	12×3.3	6316	4.29
CK-A1250	31.5	1750	400	50	22	3×1.8	12	24	3×1.4		0.24
CK-A1855	50.0	1575	350	55	22	4×2.5	18	24	4×1.8		0.28
CK-A2060	63.0	1600	350	60	22	6×3.5	20	24	6×2.8		33
CK-A2563	100	1260	350	63	24	6×3.5	25	26	6×2.8		0.37
CK-A2563T	140	1260	350	63	30	6×3.5	25	32	8×3.3		0.68
CK-A2870	180	1050	300	70	30	8×4.0	28	32	8×3.3		0.6
CK-A3080T	340	875	200	80	30	8×4.0	30	32	8×3.3		0.75
CK-A3585	400	815	200	85	30	8×4.0	35	32	8×3.3		1.00
CK-A35100	780	875	200	100	32	10×5	35	34	10×3.3		1.34
CK-A35140	1000	490	180	140	35	8×4.0	35	35	10×3.5		3.28
CK-A40100	780	560	200	100	34	10×5.0	40	34	10×3.3		1.20
CK-A40110	850	700	180	110	32	10×5.0	40	34	10×3.3		1.19
CK-A50125	1000	490	180	125	36	14×5 5	50	35	14×3.8		2.21
CK-A50130	1050	560	180	130	36	14×5.5	50	38	14×3.8		3.02
CK-A55160	2000	455	150	160	52	16×6.0	55	55	16×4.3		6.96
CK-A58130	1050	490	180	130	36	14×5.5	58	38	14×3.8		2.60
CK-A60180	2000	420	140	180	52	18×6	60	52	18×4.4		7.40

The prev: B-24 B-21/24 B-21/25 Open End Full ComplementThe next: Type CK-B One Way Clutch Bearing Unidirectional Overrunning Clutches and Backstops

Related recommendations

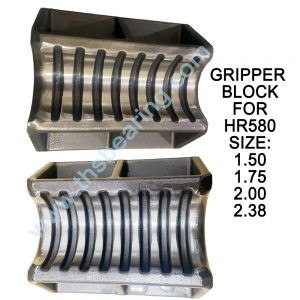

Coiled tubing Clamping block 1.50 1.75 2.00 2.38 Gripper Block for HR580
2024年1月24日 2278
Coiled tubing Injector Hydra Rig HR580 CD310341 CD310337 CD310339 CD310335 CD310343 CD310345 Application concept of Gripper Injector ChainGripper - clamping block of the injector chain, installed between the chain links (fig. gripper). The co...
View details

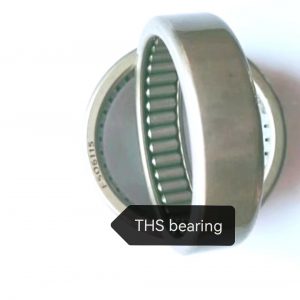

F506112 F506115 F506214 F506212 F506215 F607214 Textile Spinning machine multi arm bearing bearing
2023年12月19日 624
F506112 50 * 61 * 12mm Spinning Machinery Pointed Full Complement Needle Roller Bearing Manufacturer Direct SalesF506115 50 * 61 * 15mm Spinning Machinery Pointed Full Complement Needle Roller Bearing Manufacturer Direct Sales F506214 Textile M...
View details
GVG80 GVG90 Holdback Bucket Elevator Backstop Clutch Backstop One Way Sprag
2025年4月10日 301
GVG80 GVG90 Holdback Bucket Elevator Backstop Clutch Backstop One Way Sprag
View details

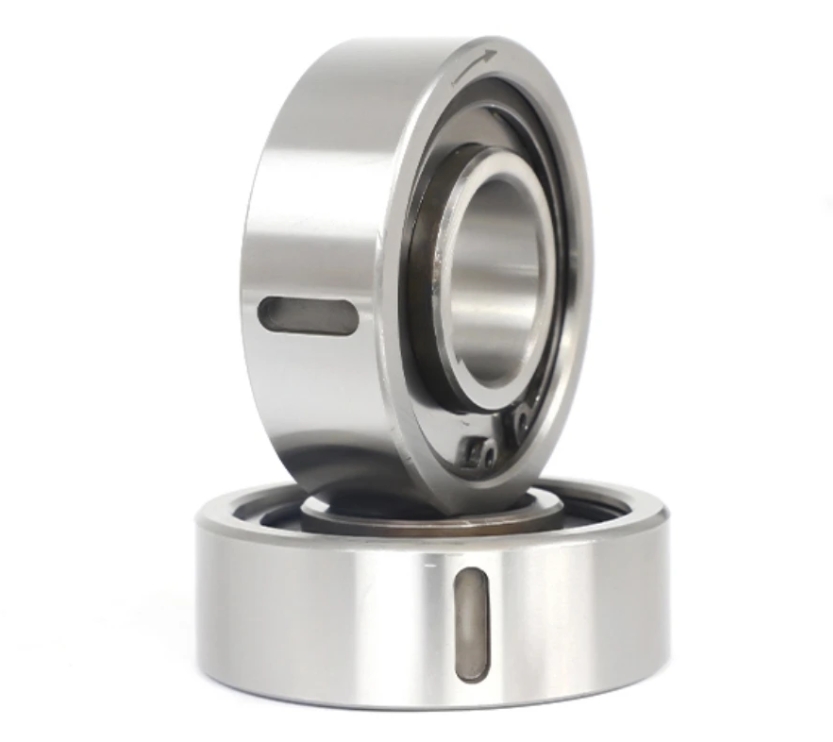

Type CK-B One Way Clutch Bearing Unidirectional Overrunning Clutches and Backstops
