Type CK-A One Way Clutch Bearing

Type CK-A is a sprag type freewheel non-bearing supported.Nominal dia. – direction diameter is a standard ball bearings dimension.Bearings are required to support axial and radial loads.Units are delivered grease lubricated.A standard arrangement is to install this type besides a bearing with the same housing diameter tolerance The inner race and the outer race are keyed to the shaft and hole This series extensive used in machiney system of conveyer,hosting,packing,printing,papermaking,weaving.chemical,medical,foodand so on.

One Way Clutch Bearing

Item	NOMINAL TORQUE [n.m]	OVERRUNNING LIMITING SPEEDS [r/min]		DImension in CONTOUR [mm]						BEARING GB/T276-1994	WEIGHT [Kg]
		OVERRUNNING LIMITING SPEEDS [r/min]		OUTER RACE SIZE			INNER RACE SIZE
		INNER RACE	OUTER RACE	d [h7]	B	bwxtw	d [h7]	C	bnx tn
CK-A1542	54	1750	500	42	23	3×1.8	15	24	3×1.4	6302	0.17
CK-A1747	75	1575	400	47	23	3×1.8	17	24	3×1.4	6303	0.21
CK-A2052	95	1400	400	52	23	3×1.8	20	24	3×1.4	6304	0.25
CK-A2562	145	1260	350	62	23	4×2.5	25	24	4×1.8	6305	0.35
CK-A3072	208	1050	300	72	23	5×3.0	30	24	5×2.3	6306	0.47
CK-A3580	340	815	200	80	28	8×4.0	35	30	6×2.8	6307	0.69
CK-A4090	462	700	200	90	28	8×4.0	40	30	6×2.8	6308	0.87
CK-A45100	783	560	200	100	28	8×4.0	45	30	6×2.8	6309	1.07
CK-A50110	850	525	180	110	28	10×5.0	50	30	8×3.3	6310	1.59
CK-A60130	1050	490	180	130	34	10×5.0	60	36	8×3.3	6312	2.16
CK-A65140	224	490	180	140	34	10×5.0	65	36	10×3.3	6313	2.49
CK-A70150	1850	455	150	150	40	10×5.0	70	42	10×3.3	6314	3.36
CK-A75160	2140	455	150	160	40	12×5.0	75	42	12×3.3	6315	3.81
CK-A80170	2450	420	150	170	40	12×5.0	80	42	12×3.3	6316	4.29
CK-A1250	31.5	1750	400	50	22	3×1.8	12	24	3×1.4		0.24
CK-A1855	50.0	1575	350	55	22	4×2.5	18	24	4×1.8		0.28
CK-A2060	63.0	1600	350	60	22	6×3.5	20	24	6×2.8		33
CK-A2563	100	1260	350	63	24	6×3.5	25	26	6×2.8		0.37
CK-A2563T	140	1260	350	63	30	6×3.5	25	32	8×3.3		0.68
CK-A2870	180	1050	300	70	30	8×4.0	28	32	8×3.3		0.6
CK-A3080T	340	875	200	80	30	8×4.0	30	32	8×3.3		0.75
CK-A3585	400	815	200	85	30	8×4.0	35	32	8×3.3		1.00
CK-A35100	780	875	200	100	32	10×5	35	34	10×3.3		1.34
CK-A35140	1000	490	180	140	35	8×4.0	35	35	10×3.5		3.28
CK-A40100	780	560	200	100	34	10×5.0	40	34	10×3.3		1.20
CK-A40110	850	700	180	110	32	10×5.0	40	34	10×3.3		1.19
CK-A50125	1000	490	180	125	36	14×5 5	50	35	14×3.8		2.21
CK-A50130	1050	560	180	130	36	14×5.5	50	38	14×3.8		3.02
CK-A55160	2000	455	150	160	52	16×6.0	55	55	16×4.3		6.96
CK-A58130	1050	490	180	130	36	14×5.5	58	38	14×3.8		2.60
CK-A60180	2000	420	140	180	52	18×6	60	52	18×4.4		7.40

The prev: B-24 B-21/24 B-21/25 Open End Full ComplementThe next: Type CK-B One Way Clutch Bearing Unidirectional Overrunning Clutches and Backstops

Related recommendations

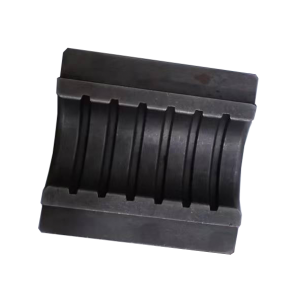

Coiled Tubing Injector Gripper Block Parts
